Project 2: Reflection, Refraction and Translucency
Project Objective:
Through the use of creating hybrid reflection, refraction and translucency elements in 3D, and the implementation of them, you will further advance your knowledge of integrating elements in compositing. We will explore elements created through the use of Arnold, as well as some additional Maya Software shaders that introduce the concept of reflection and bounce light. Integration is key therefore moving the object will prove that you have accurate integration. Descriptive use of buildup and breakdown elements is required.
Process:
Photography:
The first step of this project is to take a series of photos of a place with unique light and shadows. The goal is to make the photos interesting and have a clear focus on the composition of light and shadow. The real object should take up 25% of the pixels on screen, and the object will need to interact with the environment by casting shadows and reflecting
In order to provide objects to use as reference in the photos, I used a Light Integration Kit which includes: a wooden cube with square edges, a grey or white sphere, and a chrome sphere.
In the end there should be a set of atleast 14 photos:

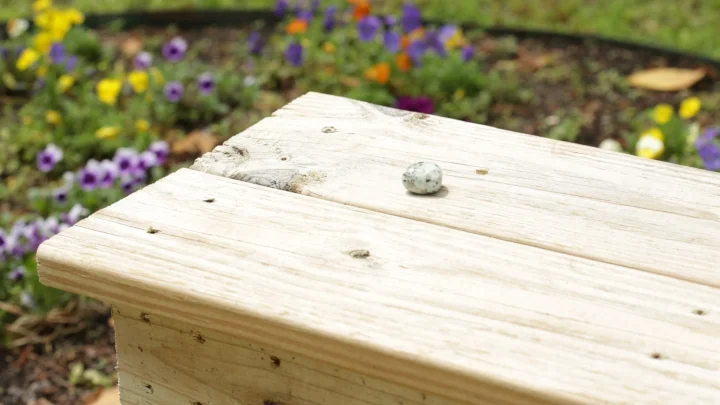

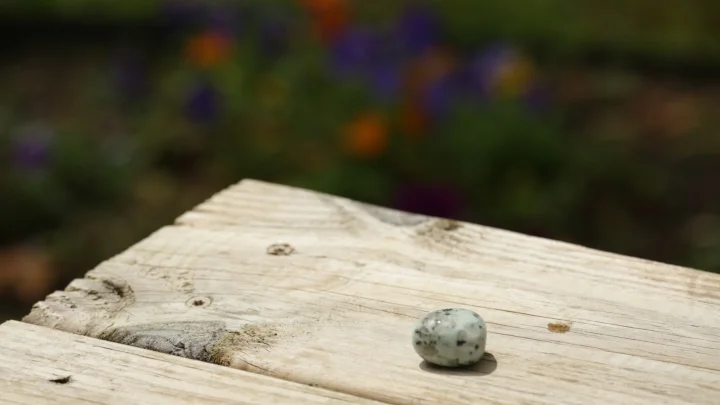

(1) Image of a clean plate of the scene with light and shadows

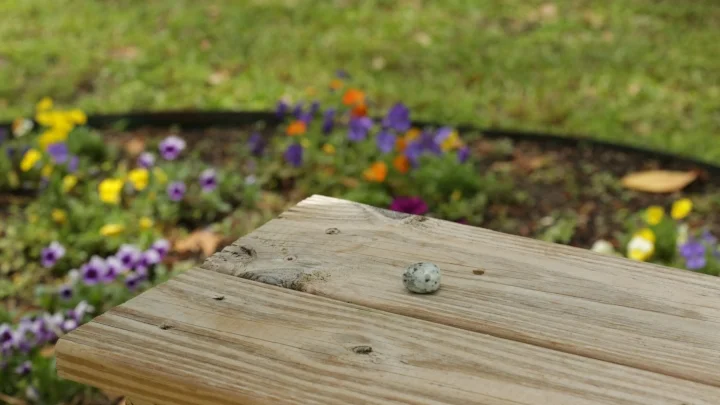

(1) Image of a shadow plate with the scene in all shadow

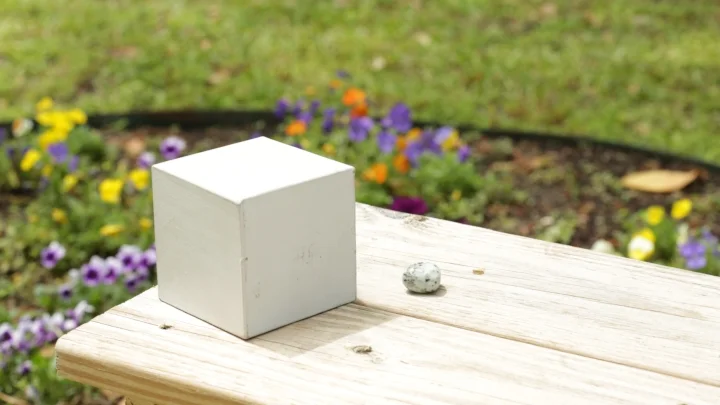

(1) Image of the wood cube

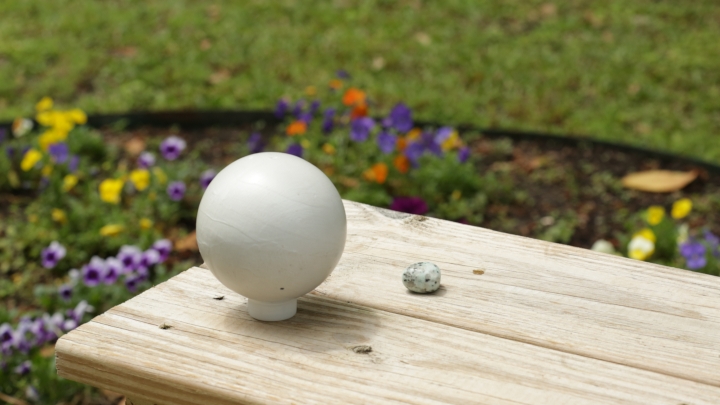

(1) Image of the grey/white sphere in light
(1) Image of the grey/white sphere in shadow

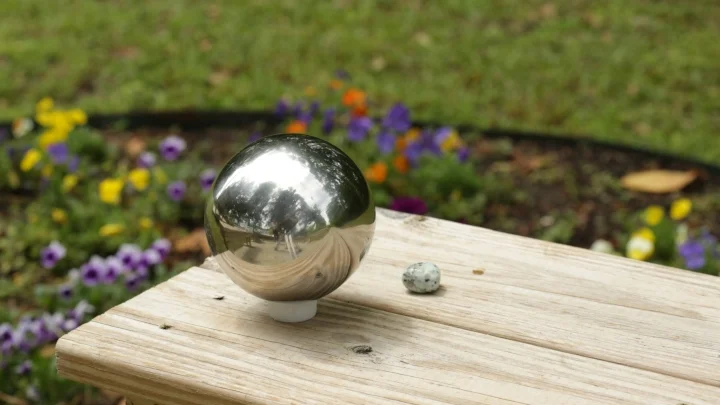

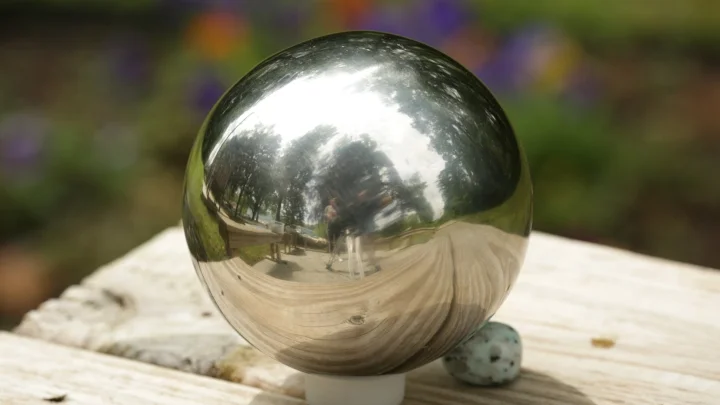

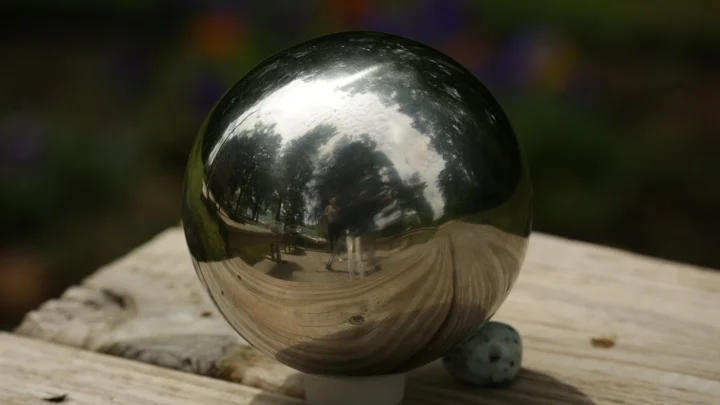

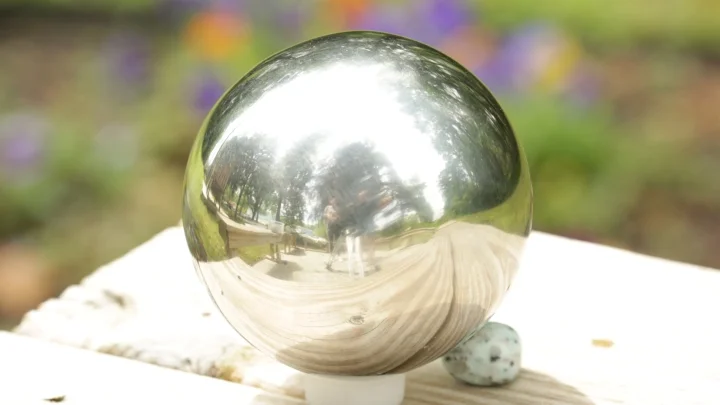

(1) Image of the chrome sphere

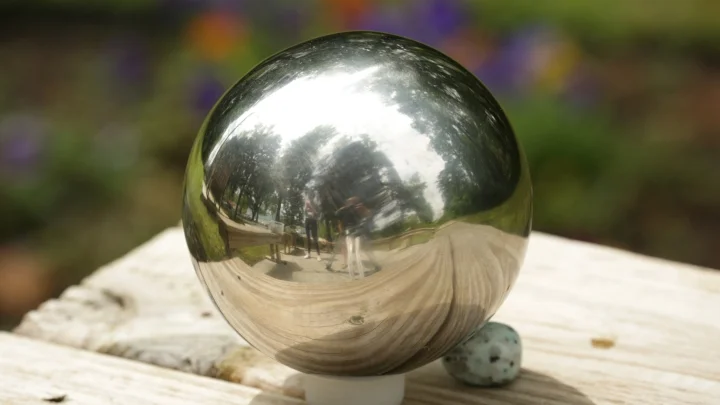

(1) Image of the chrome sphere zoomed in
(7) Images of the chrome sphere zoomed in at 7 different exposure levels
My Photos:
F Number: 9.5
Exposture Time: 1/750
Camera: Canon EOS 5D Mark III
Image Size: 5760 × 3840
Color Space: RGB
Focal Length: 88

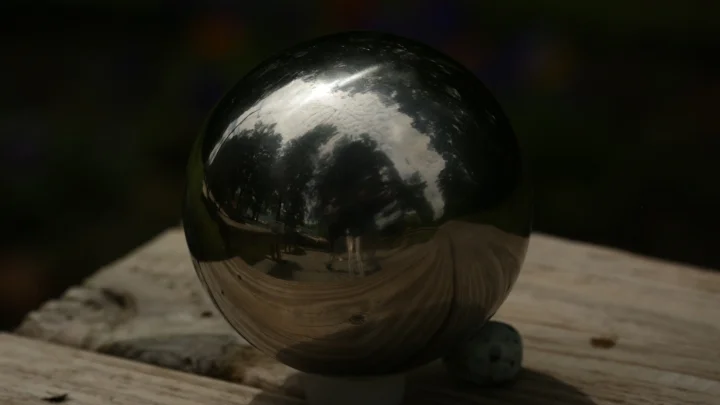

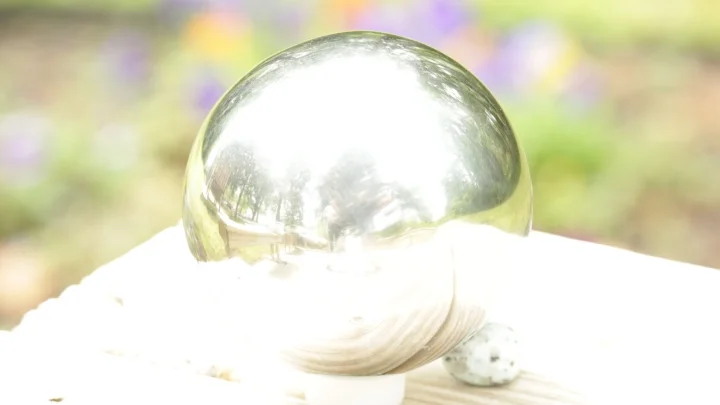

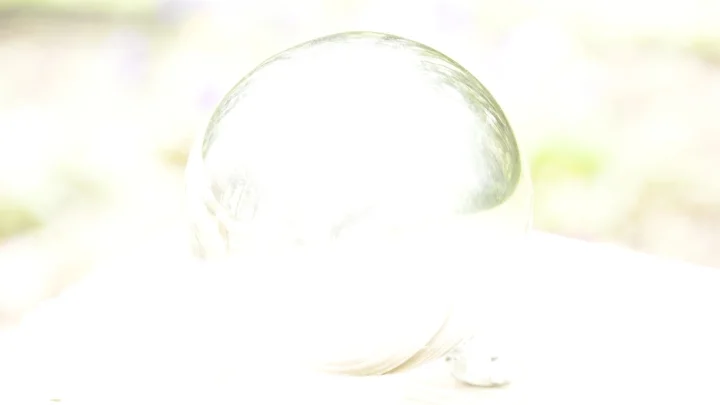

Chrome sphere at 7 different exposure levels:
Set Up The Scene:

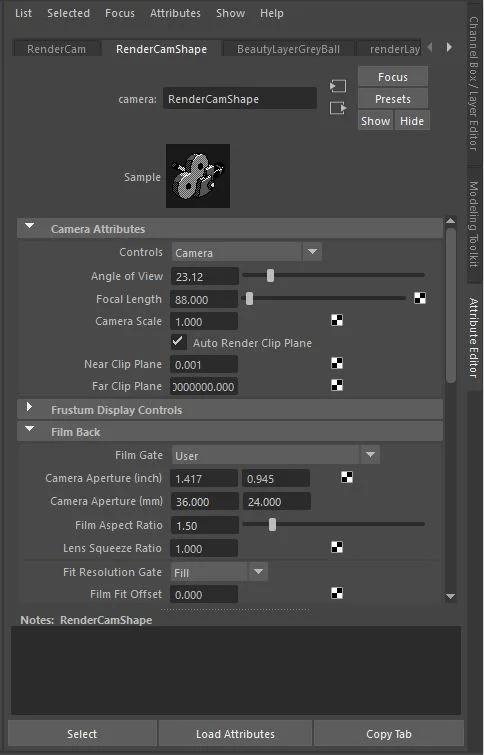

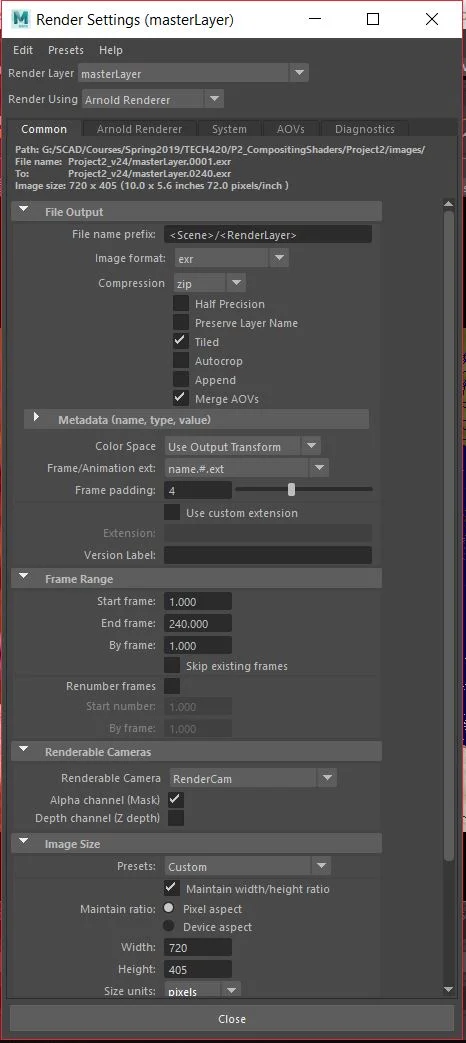

The first step in setting up my scene was to change the units in Maya to inches. Next, I looked at the image resolution of the images I took, which is 5760 × 3840. Since that is really big, I scaled it down, by a multiple of the original resolution, to 1080 x 610, for now. I then created a new camera to work with and named it “RenderCam”. Under the camera settings I changed Focal Length to match that of my photos: 124.

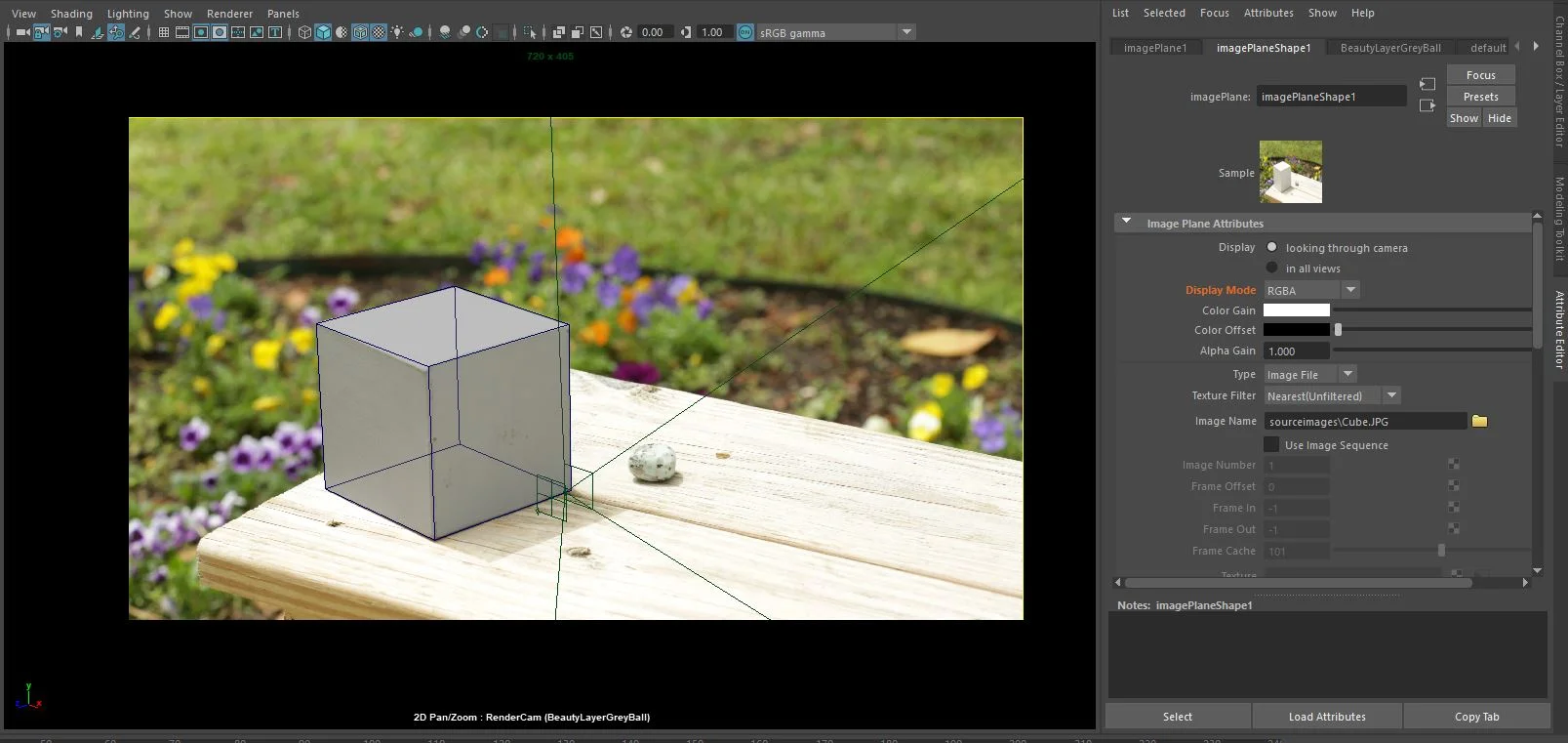

Next, under the RenderCam settings, I inserted an image plane the wood cube. I then created a cube that was approximately the same size as the cube in the photo: 6” x 6” x 6”. This allowed me to position my camera by moving it around until my cube lined up with that of the cube in my photo.

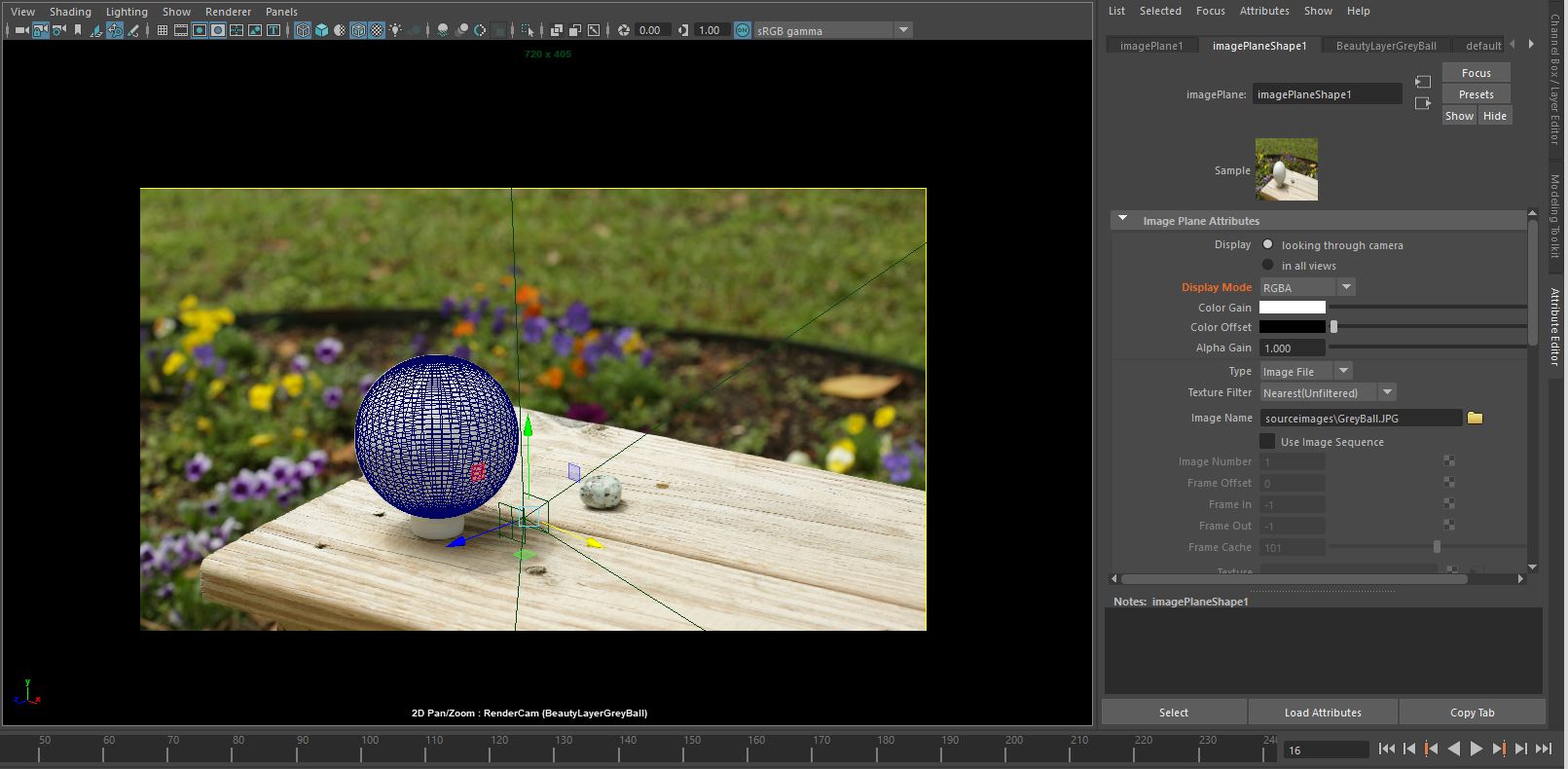

Next, I switched out the photo of the cube and put in the photo of the grey sphere on the image plane under the RenderCam. I then created a sphere that was approximately the same size of that in the photo: 3.6” x 3.6” x 3.6”. When taking the photo of the grey sphere, I had placed it on top of a bottle cap to keep it in place. So in Maya I need to move the sphere up just a little bit, to account for the size of the bottle cap.
Lighting:

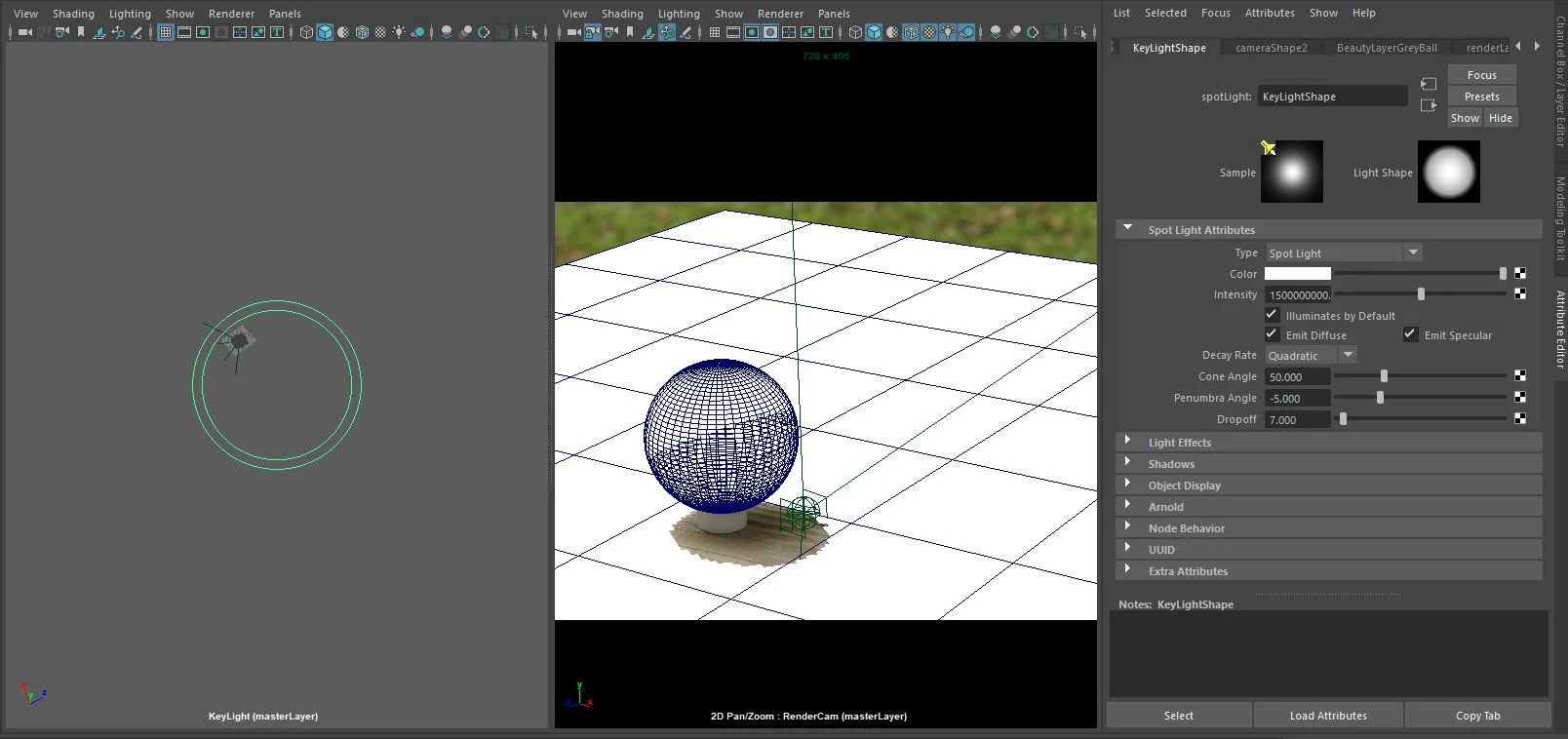

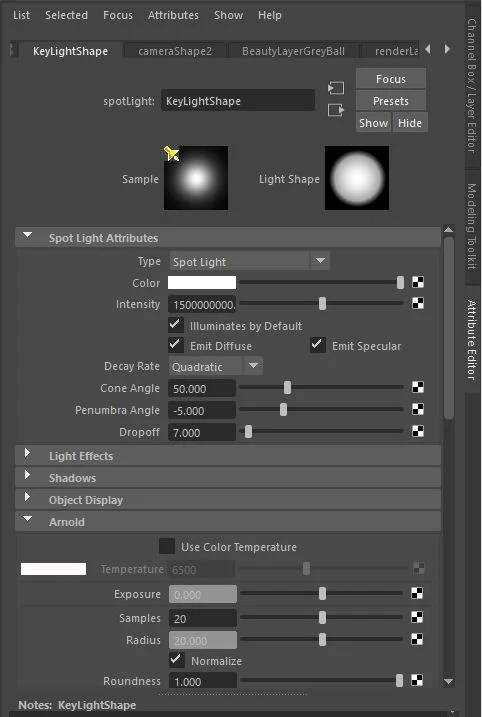

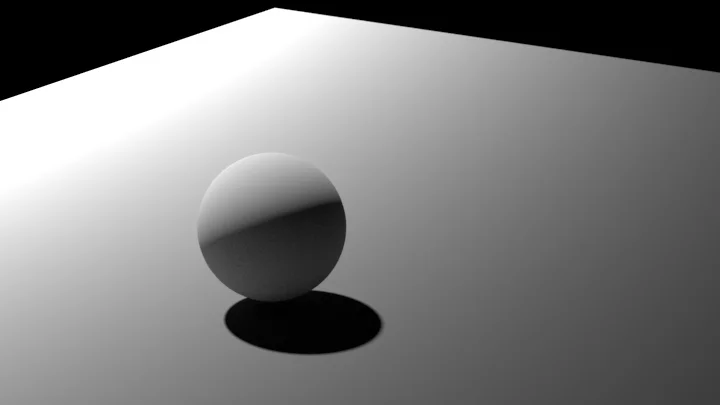

After inserting the image of the grey sphere and making the sure the camera still matches, I can create a Keylight and work on matching the lighting in my scene to that of the image. By paying attention to the location and softness of the shadow from the grey sphere and the specular highlights on it, I can move the Keylight around until it matches.
The next step is to prepare my 7 images at different exposure levels of the chrome ball, in order to use it as a fill light.

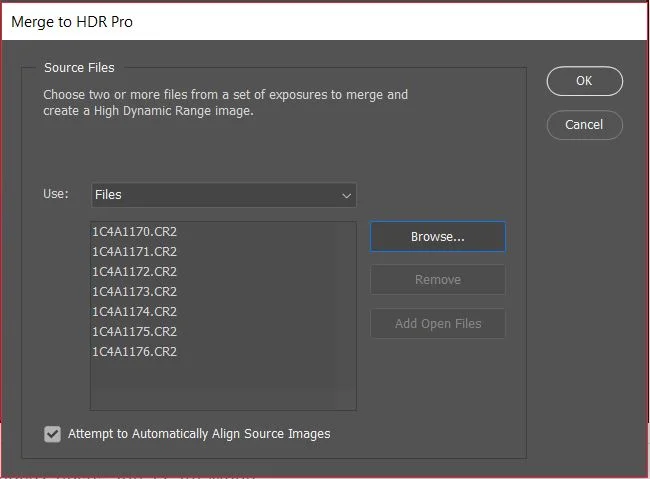

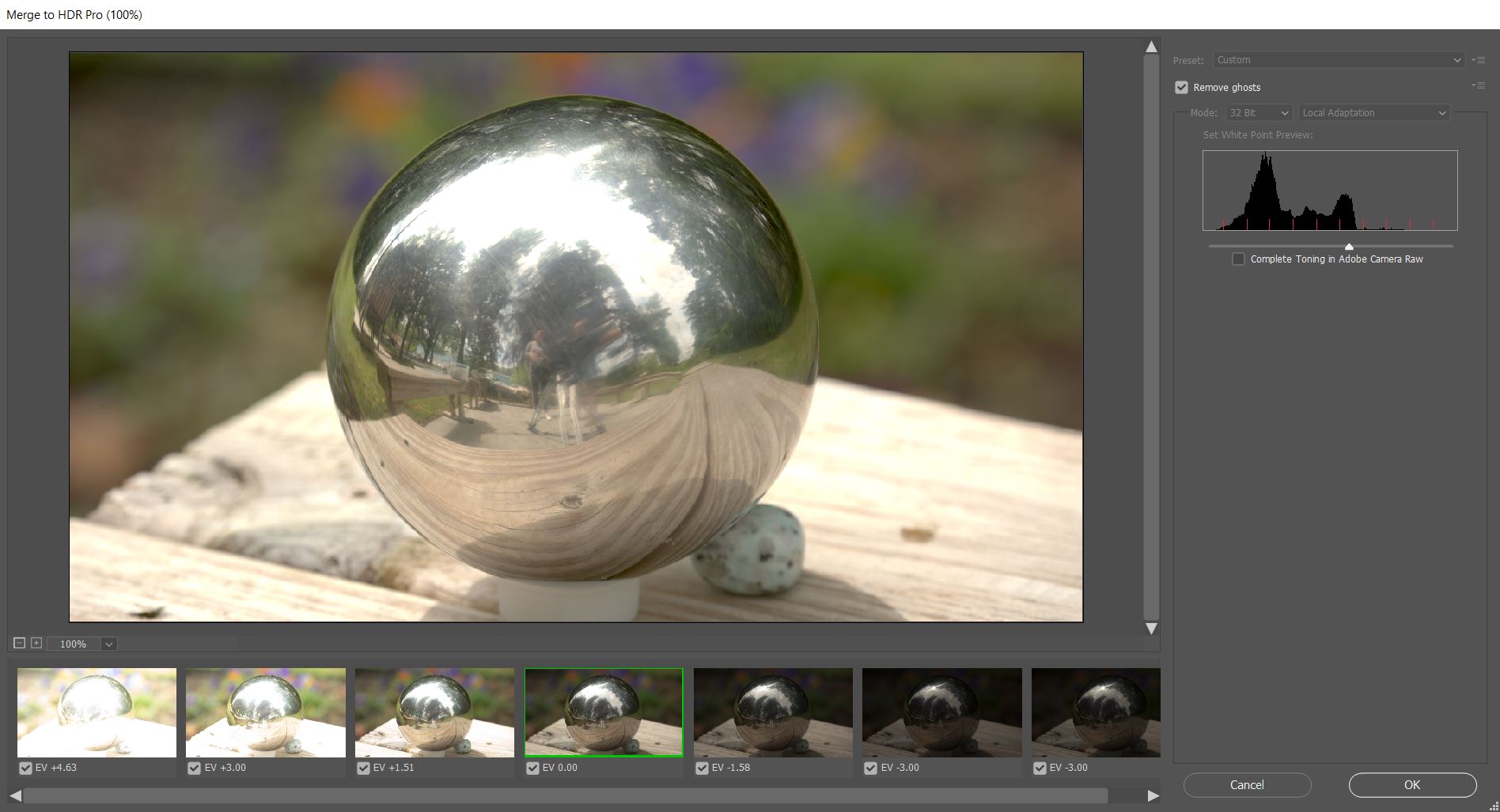

In Photoshop I went to File -> Automate -> Merge to HDR Pro:
A small window opens, where I select the 7 Images of the chrome ball and then hit OK.
A second window opens, and I selected Remove Ghosts, and 32-Bit Mode.
The last step is to crop the image of the HDR to the edges of the chrome ball, and then save it as a Radiance or .HDR.

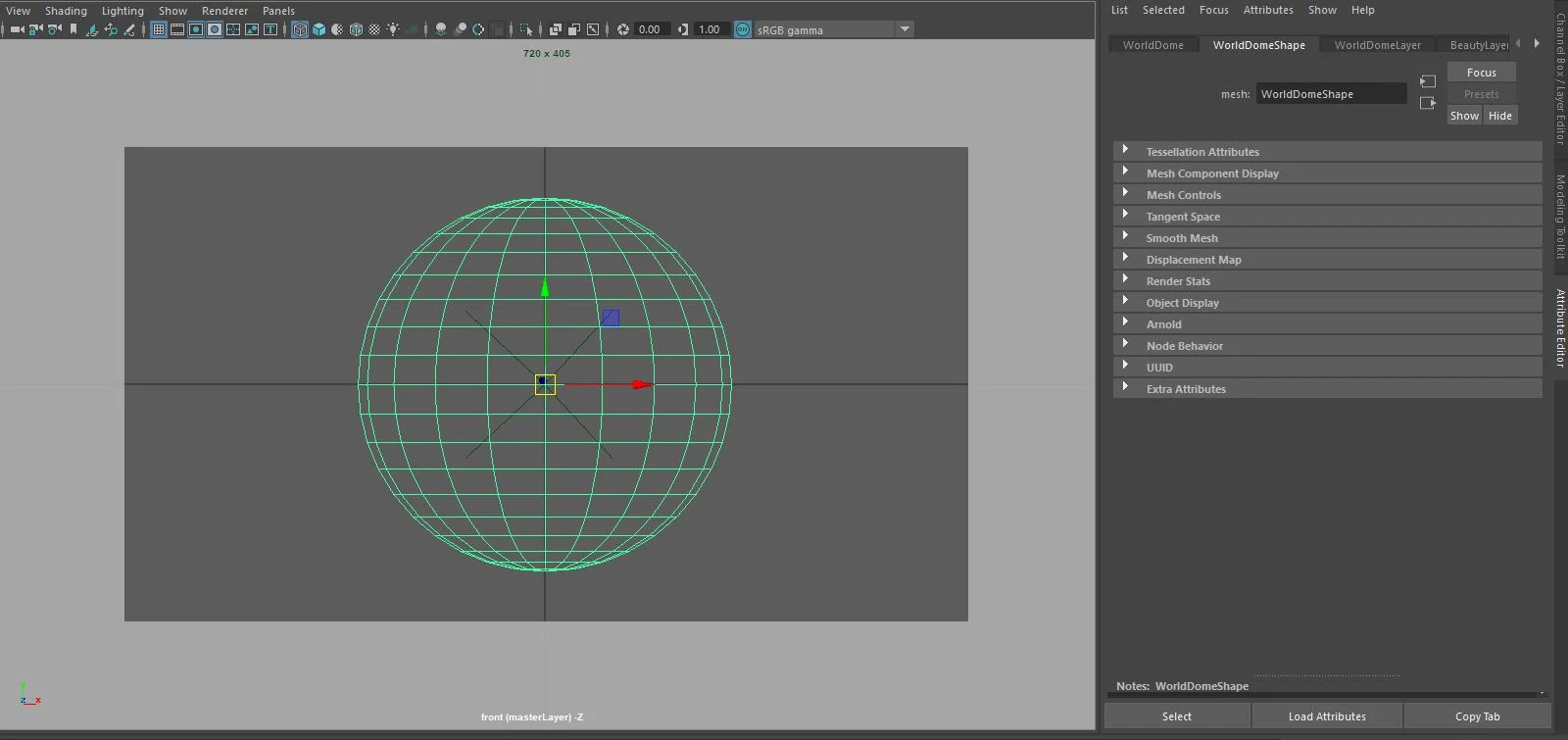

Next, I created a sphere and made it large enough to fit the entire scene inside of it and named it WorldDome.

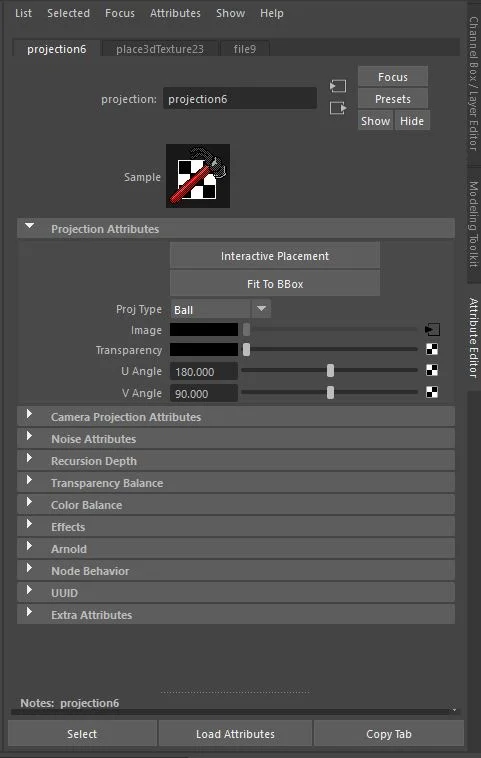

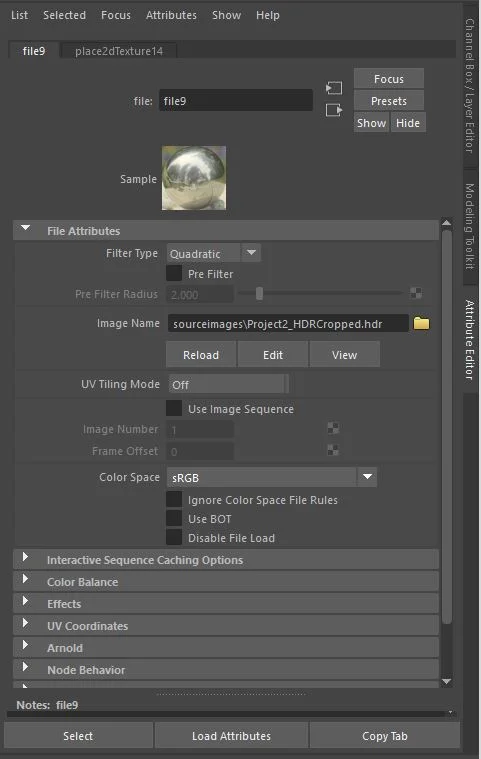

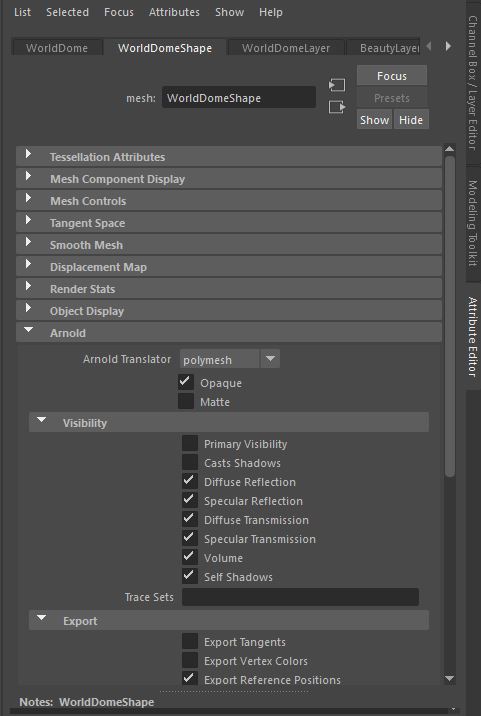

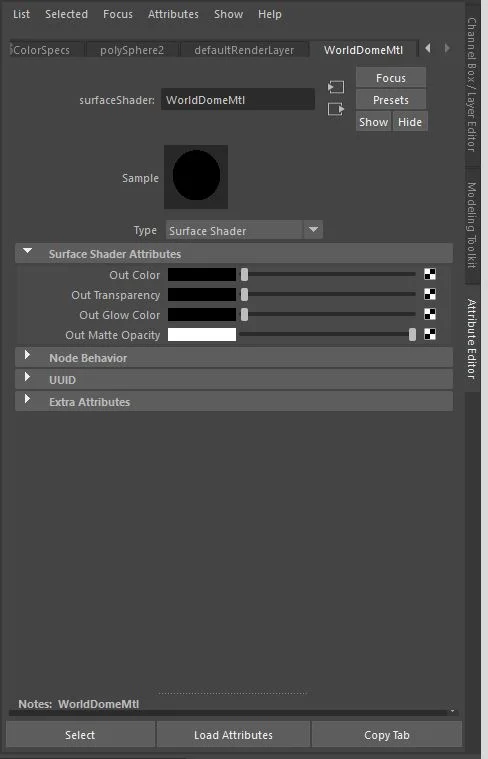

Once the sphere is created, under the Mesh tab (the second tab on the attribute editor), I went to the Arnold Settings and turned OFF Primary Visibility and Cast Shadows. Next, I assigned a new material and chose a Maya Surface Shader. Under the Surface Shader Attributes, I selected the checkerboard next to the “Out Color”, and then right clicked on the “File” option, and selected “Create As Projection”. Under the projection tab I changed the Projection Type to “Ball,” and then uploaded the image of my cropped chrome sphere.

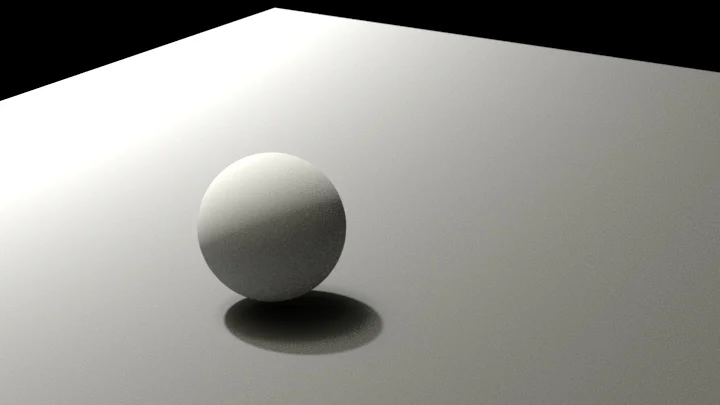

When I render the sphere again, I now have a fill light.

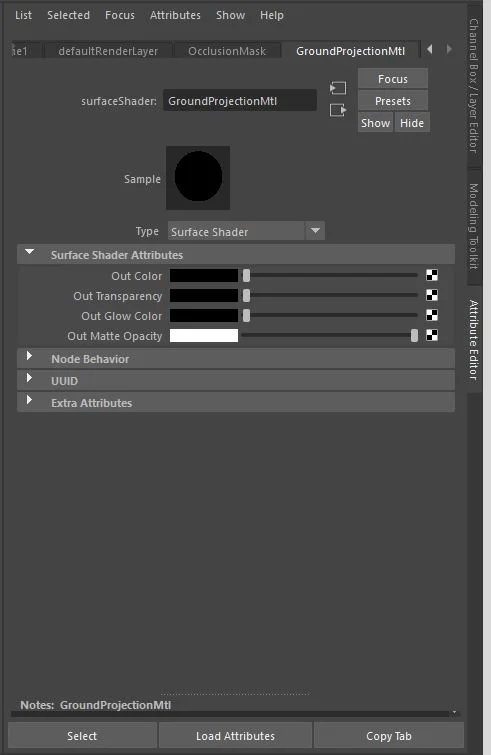

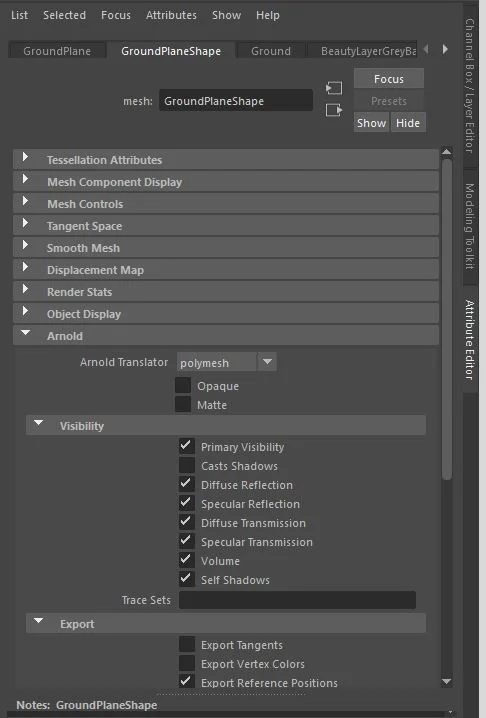

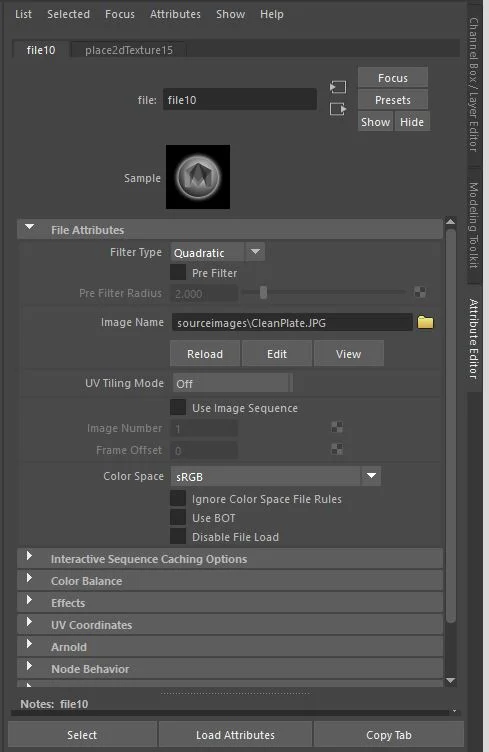

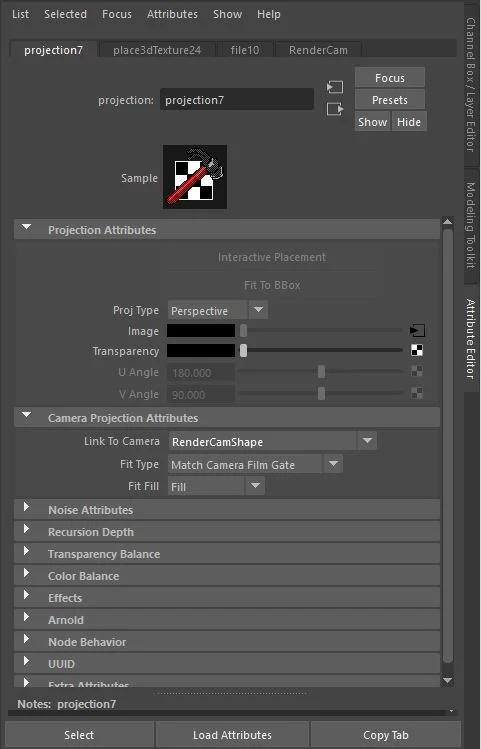

The next step is to create the ground plane for the scene. This process is very similar to how I created the dome in the previous step. I created a ground plane that was large enough to fill the screen. Under the Mesh tab (the second tab on the attribute editor), I went to the Arnold Settings and turned OFF Primary Visibility. Next, I assigned a new material and chose a Maya Surface Shader. Under the Surface Shader Attributes, I selected the checkerboard next to the “Out Color”, and then right clicked on the “File” option, and selected “Create As Projection”. Under the project tab I changed the Projection Type to “Perspective,” and then went to the Camera Project Attributes. For Link to Camera I connected my “RenderCam”, and I changed the Fill Type to “Match Camera Resolution”. Lastly, I uploaded the image of my clean plate.
This process allows me to create the bounce light and color from the ground up onto the object.
Render Layers:

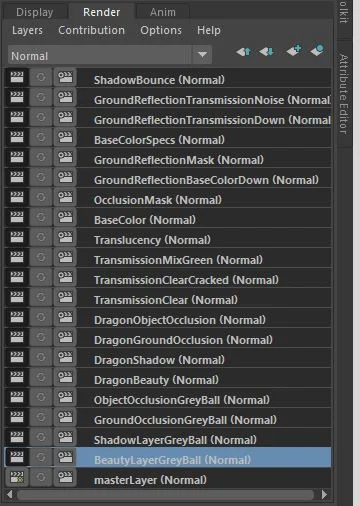

The next step is to set up separate parts of the rock shader into render layers in order to be able to composite everything together in Nuke. I created the following render layers:
Dragon Beauty Layer
Dragon Shadow Layer
Dragon Ground Occlusion Layer
Dragon Object Occlusion Layer
Dragon Transmission Clear Layer
Dragon Transmission Cracked Layer
Dragon Transmission Mix Mask Layer
Dragon Base Color Layer
Dragon Translucency Layer
Dragon Occlusion Mask Layer
Dragon Base Color Ground Reflection Layer
Dragon Ground Reflection Mask Layer
Dragon Transmission Ground Reflection Layer
Dragon Specularity Layer
Dragon Shadow Bounce Layer
Each render layer needs to be set up in a specific way for compositing purposes.
Dragon Beauty Layer:
CG Object
Key Light
Fill Light
Ground Plane:
Projection of Background Plate Image
Primary Visibility Turned Off

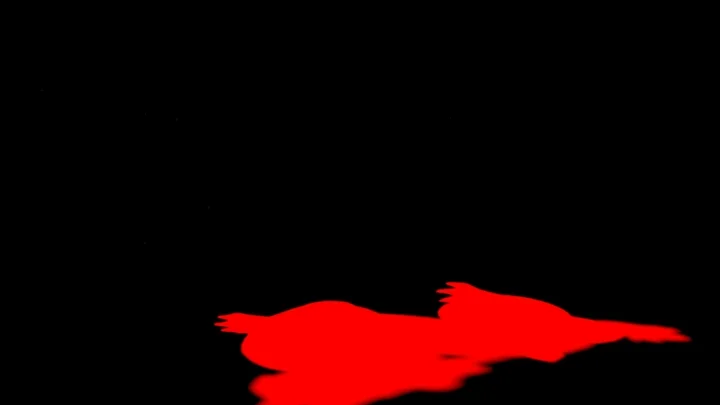

Dragon Shadow Layer
CG Object:
Primary Visibility Turned Off
Key Light
Ground Plane:
Ai Shadow Matte Shader
Primary Visibility Turned On

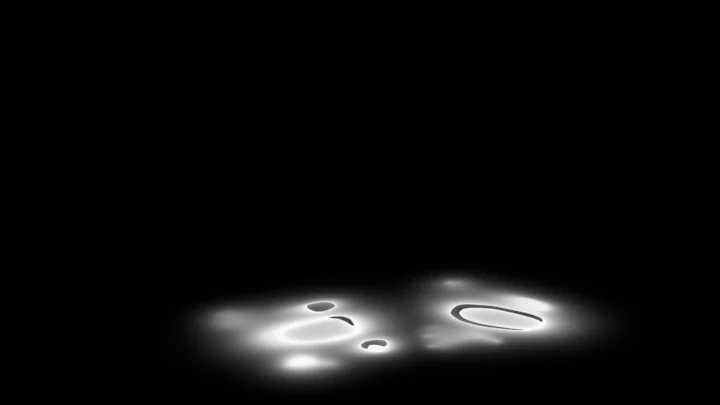

Dragon Ground Occlusion Layer
CG Object
Primary Visibility Turned Off
Ground Plane:
Ai Ambient Occlusion Shader (Black and White Values Switched)
Primary Visibility Turned Off

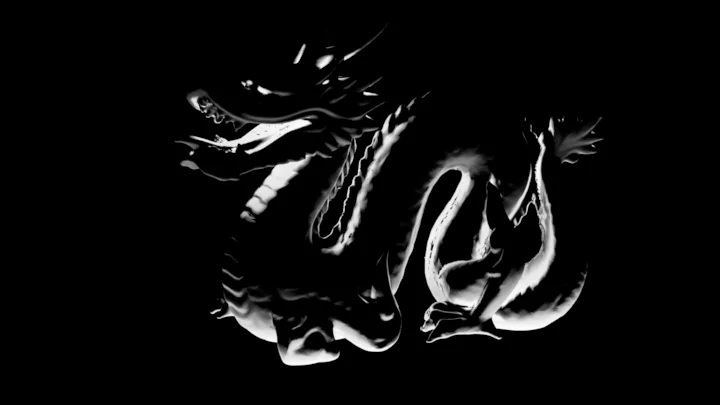

Dragon Object Occlusion Layer
CG Object
Ai Ambient Occlusion Shader (Black and White Values Switched)
Primary Visibility Turned Off
Ground Plane:
Primary Visibility Turned Off

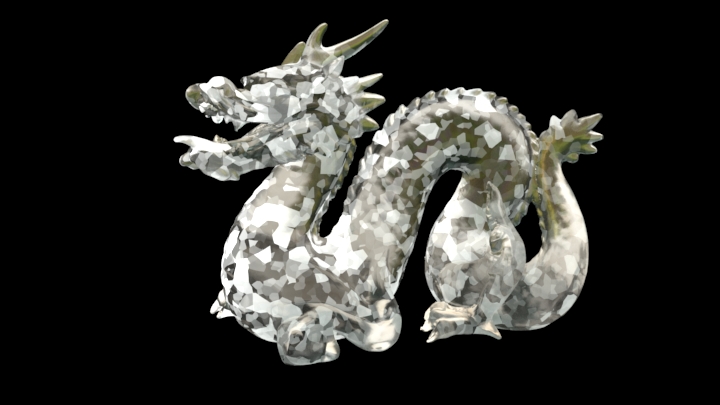

Dragon Transmission Clear Layer
CG Object
Transmission Clear Shader
Ground Plane:
Projection of Background Plate Image
Primary Visibility Turned Off

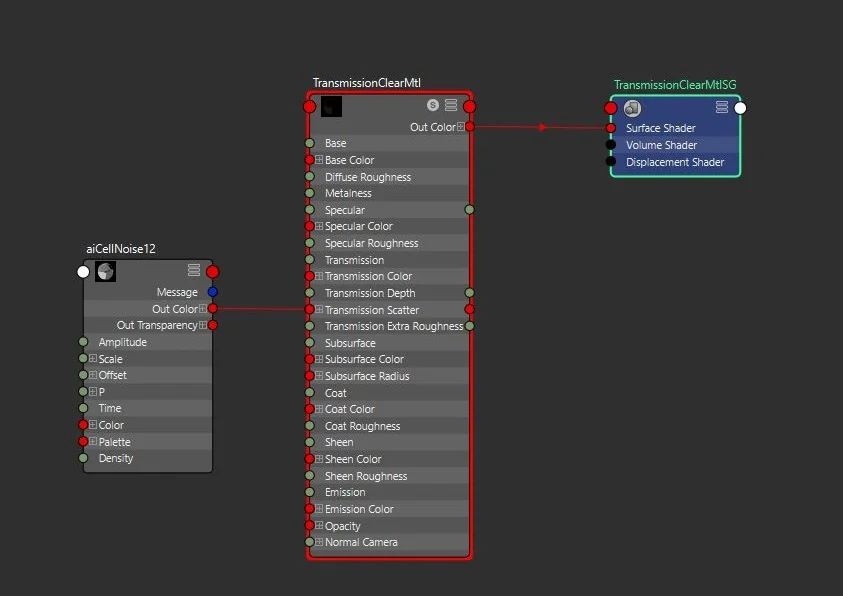

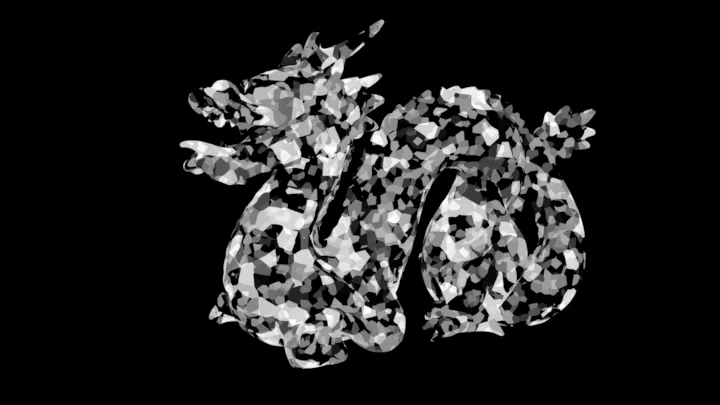

To create the different layers of translucency in the transmission shader, I used an aiCellNoise as a mask in the transmission scatter.

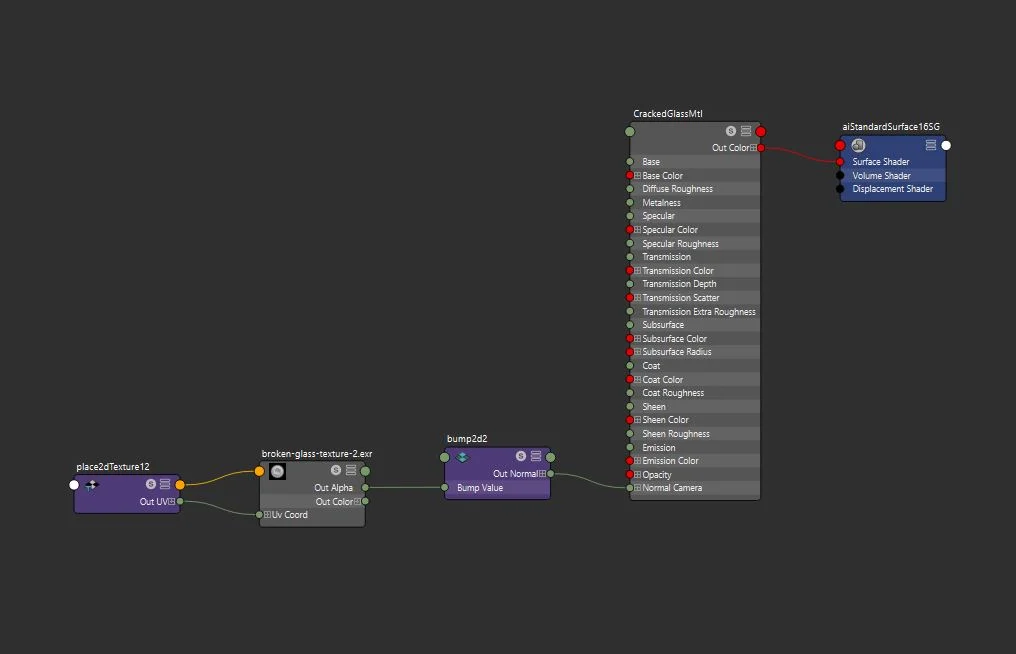

Dragon Transmission Cracked Layer
CG Object
Transmission Cracked Shader
Ground Plane:
Projection of Background Plate Image
Primary Visibility Turned Off

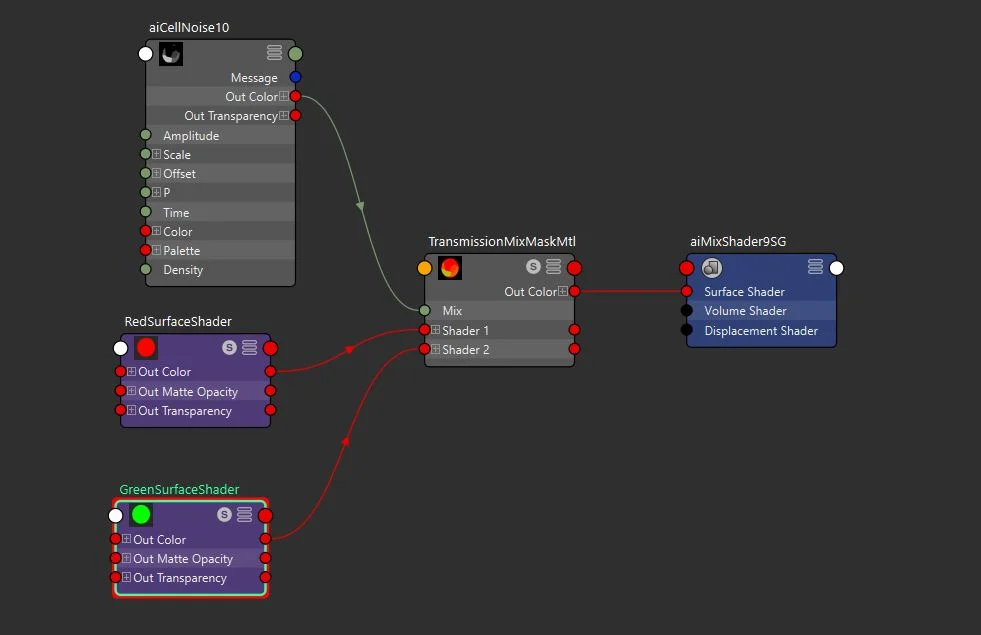

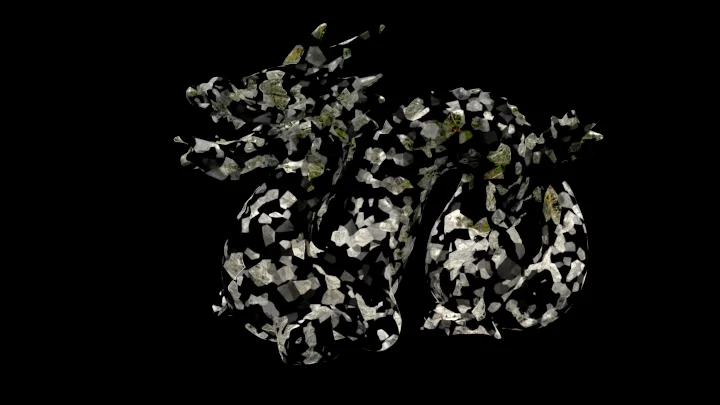

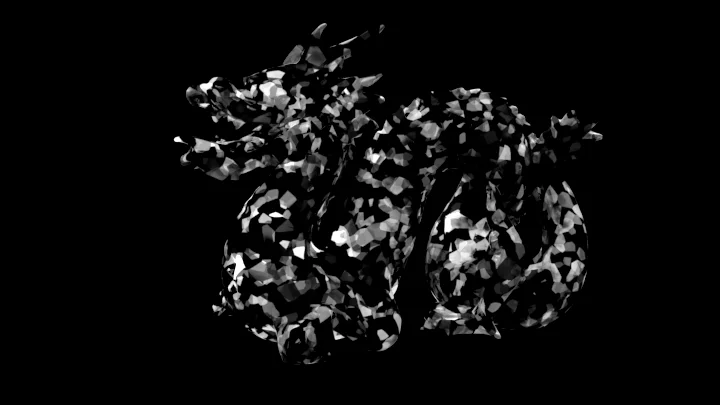

Dragon Transmission Mix Mask Layer
CG Object
aiMixShader controlled by an aiCellNoise pattern.

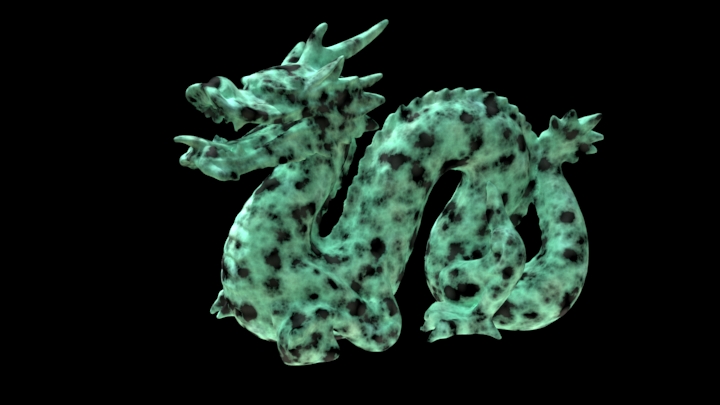

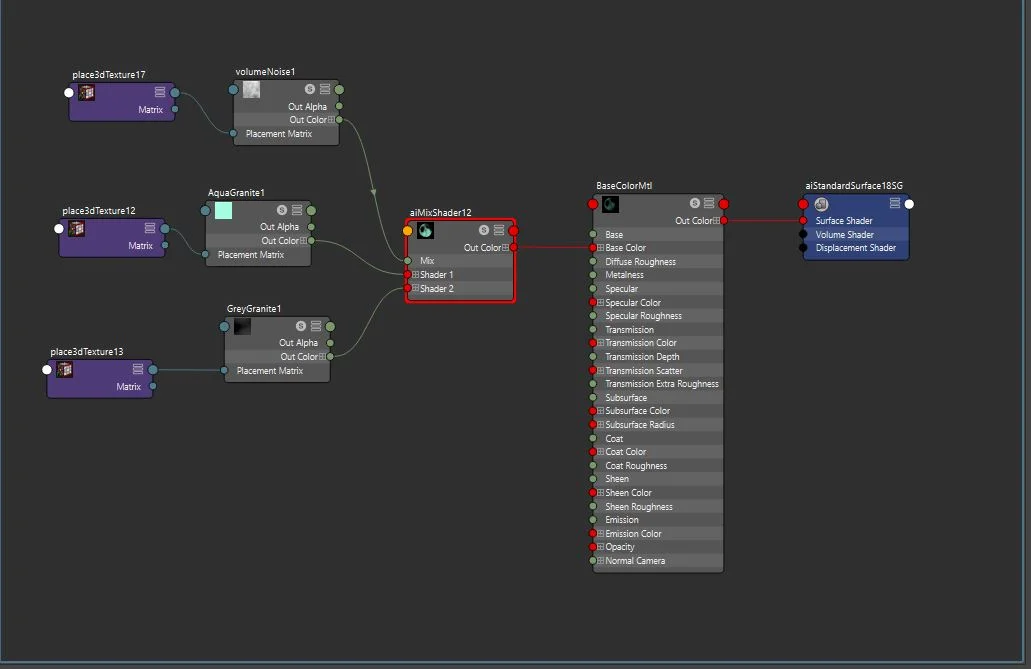

Dragon Base Color Layer
CG Object:
Base Color Shader
Ground Plane:
Projection of Background Plate Image
Primary Visibility Turned Off

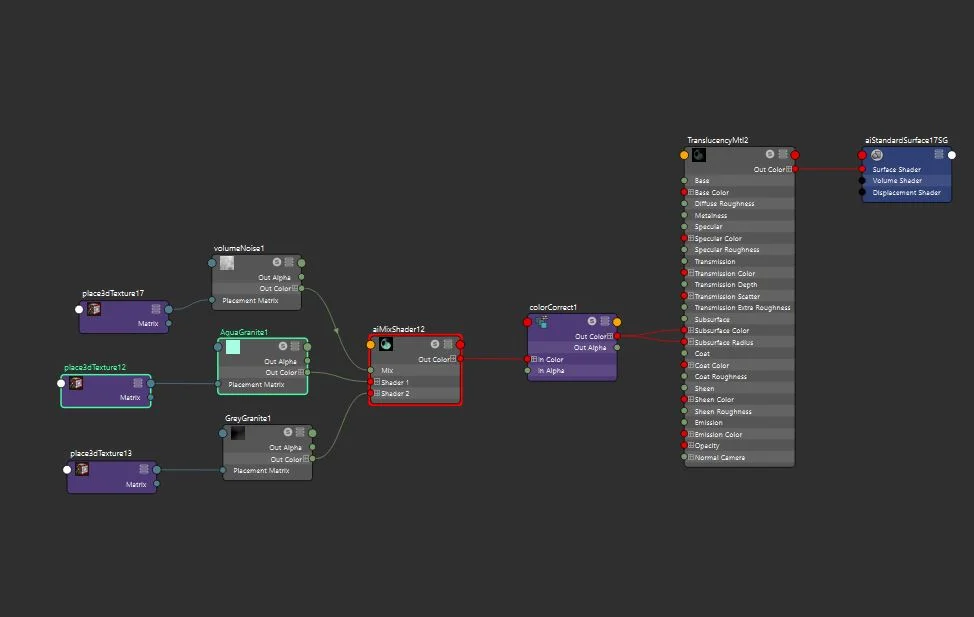

Dragon Translucency Layer
CG Object:
Translucency Color Shader
Ground Plane:
Projection of Background Plate Image
Primary Visibility Turned Off
Dragon Occlusion Mask Layer
CG Object
Ai Ambient Occlusion Shader (Black and White Values Switched)
Primary Visibility Turned Off
Ground Plane:
Primary Visibility Turned Off

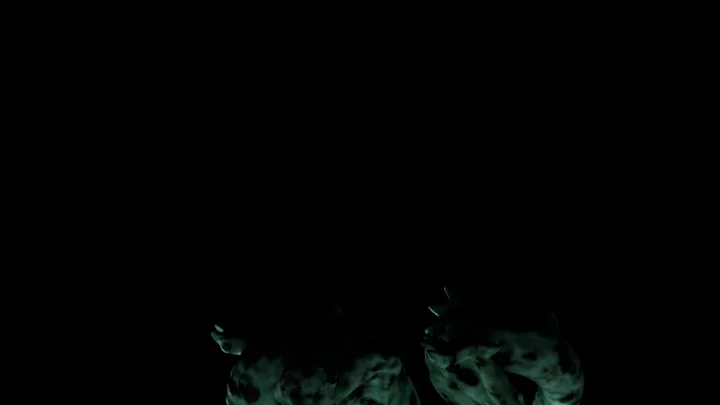

Dragon Base Color Ground Reflection Layer
CG Object
Base Color Shader
Primary Visibility Turned Off
Ground Plane:
Chrome Material to catch reflection
Dragon Ground Reflection Mask Layer
CG Object
Chrome Material
Primary Visibility Turned Off
Ground Plane:
Shadow Matte Material

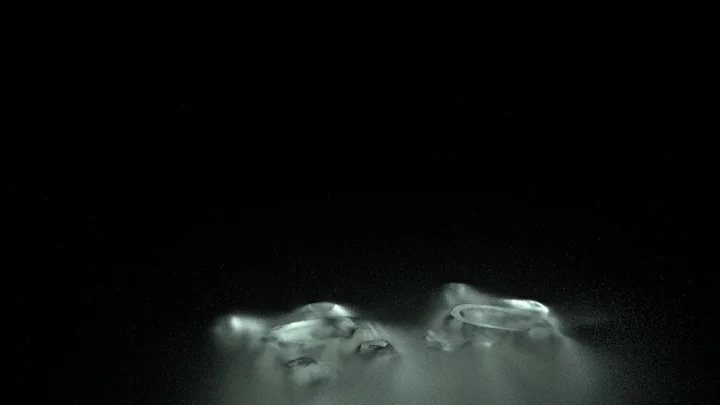

Dragon Transmission Ground Reflection Layer
CG Object
Transmission Shader
Primary Visibility Turned Off
Ground Plane:
Chrome Material to catch reflection
Dragon Specularity Layer
CG Object:
Chrome Material
Ground Plane:
Primary Visibility Turned Off
Ground Reflection
Dragon Shadow Bounce Layer
CG Object
Chrome Material
Ground Plane:
Primary Visibility Turned Off
Shadow Matte Material

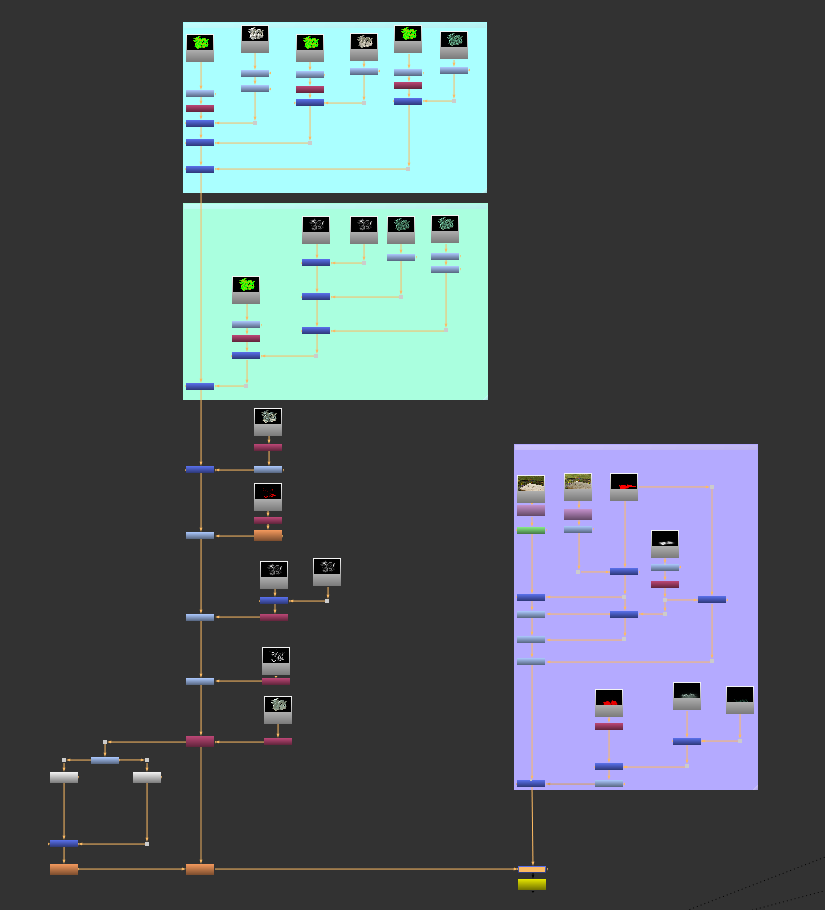

Nuke:
Working with the Transmission:
